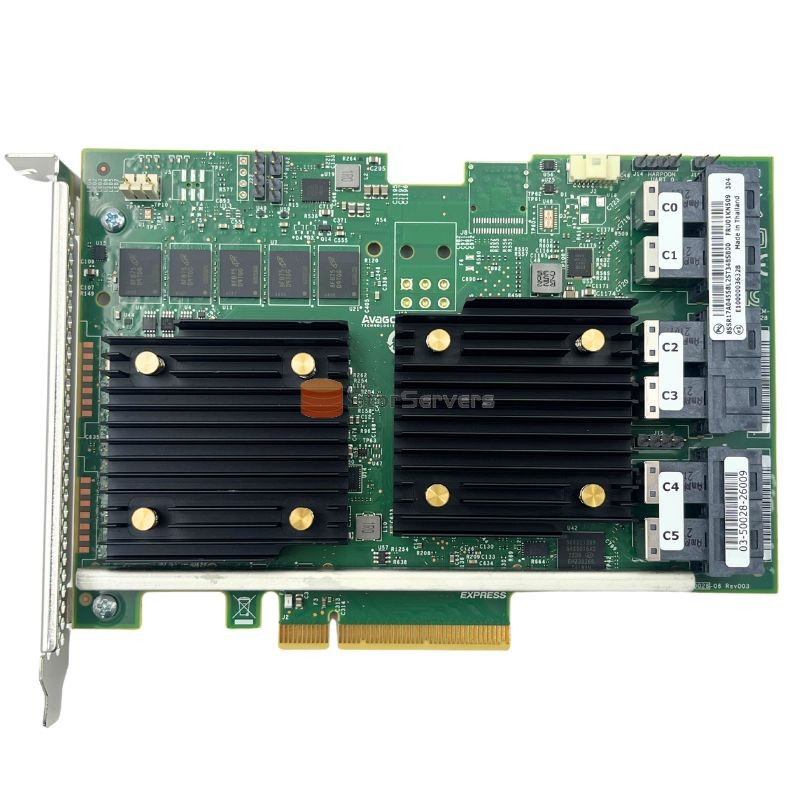

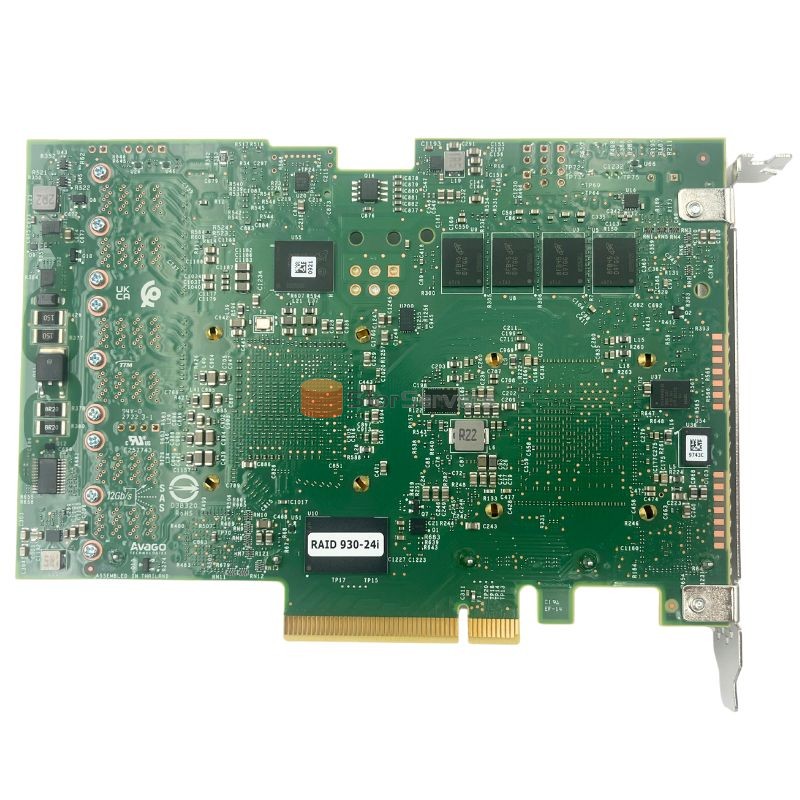

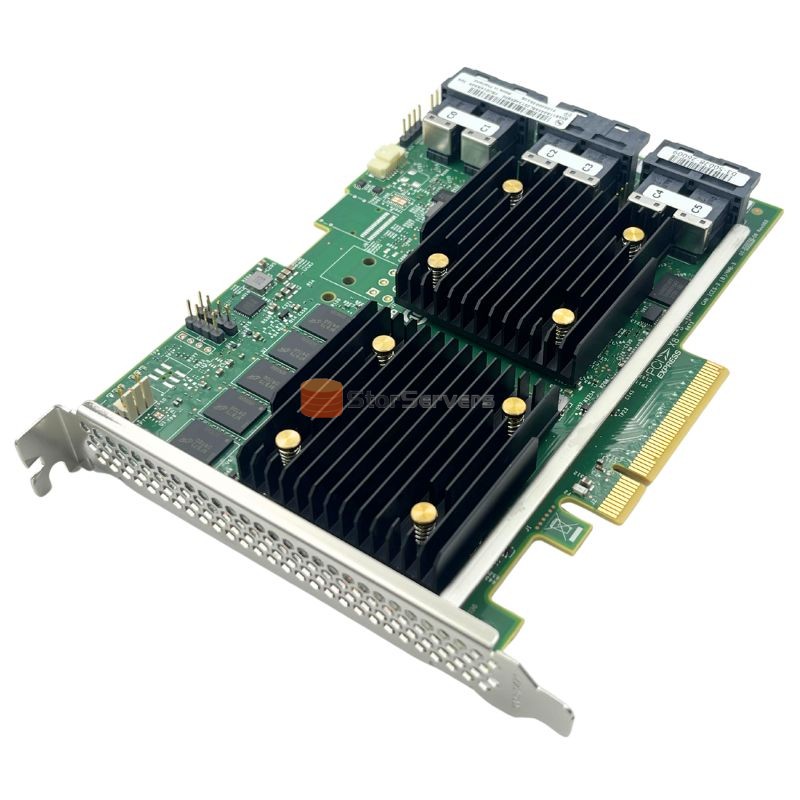

930-24I SAS/SATA 12Gb HBA PCIe 3.0 x8
Applications
930-24i is a high-performance hardware RAID controller designed specifically for enterprise storage, based on Broadcom MegaRAID technology, supporting 12Gbps SAS/SATA interfaces and PCIe 3.0 x8 channels, suitable for virtualization, database, and large-scale storage expansion scenarios.
Key Features
- PCIe 3.0 x8 Host Interface
- 12 Gbps SAS/SATA RAID controller based on Broadcom MegaRAID 9460 adapter series
- 2GB, 4GB, or 8GB integrated flash cache
- Can connect up to 2, 8, 16, or 24 internal SAS or SATA drives
- Support mixed use of SAS and SATA HDD and SSD. Mixing SAS and SATA drives in the same array is not supported. Mixing HDD and SSD in the same array is not supported.
- Supports a mix of 24 Gb/s, 12 Gb/s, and 6 Gb/s drives; The 24 Gb/s drive runs at a speed of 12 Gb/s
- Supports RAID 0, 1, 10, 5, 50, 6, and 60 standards
- Support JBOD (non RAID) drive status
- Supports up to 64 logical drives
- Supports logical drive sizes greater than 2 TB.
- Configurable stripe sizes range from 64 KB to 1 MB
- Supports 512e, 512n, and 4K sector formatted drives
- Support UNMAP command for SAS SSD (JBOD and RAID volumes)
Specification
| Model |
930-24I |
| Form factor |
PCIe low profile |
| Host Connector |
PCIe 3.0 x8 |
| Port interface |
12 Gb SAS |
| Number of ports |
24 |
Port connectors
|
6 Mini SAS HD x4 (SFF-8643) |
Drive interface
|
SAS, SATA |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
