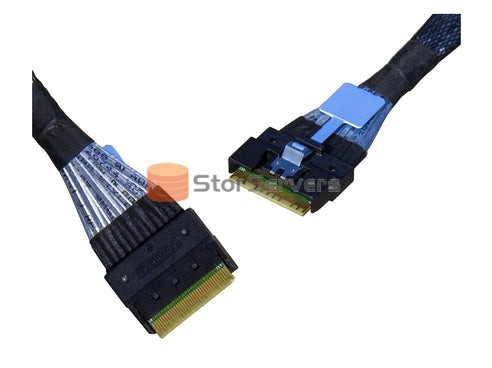

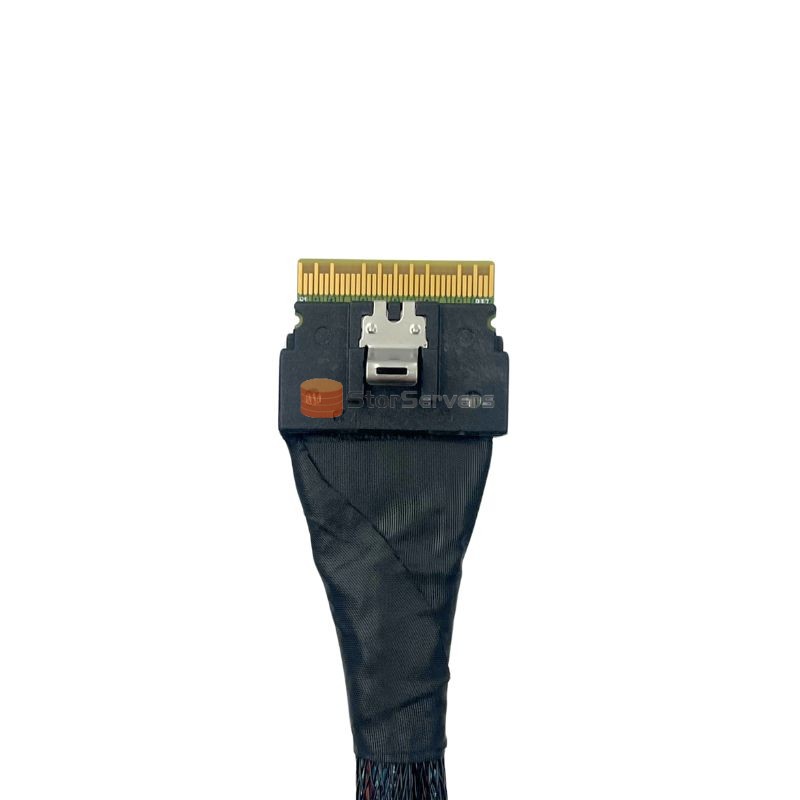

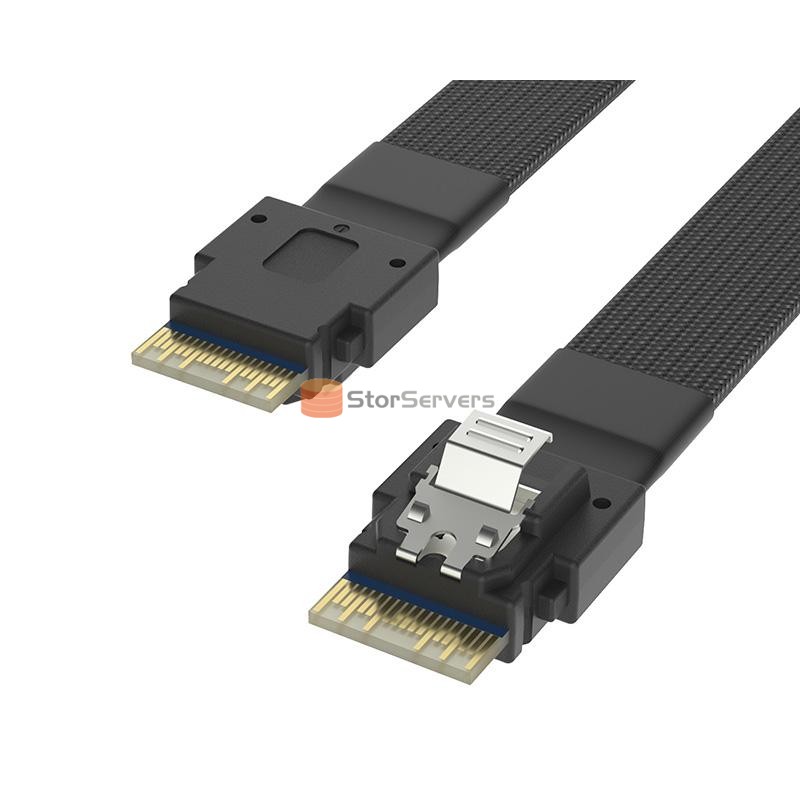

Straight-through cable SFF 8654 8X to 8654 8X
Applications
1、 Interface and Physics: Connector: SFF-8654 8i (74pin), 0.6mm spacing. End connection: Both ends are SFF-8654 8i male heads with latch and pull tab. Impedance: 85 Ω (differential), compatible with PCIe/SAS signal standards. Wire gauge:30AWG/32AWG high-frequency twisted pair, shielded/semi shielded optional. Length: commonly 0.3m/0.5m/0.8m/1m, customizable. Appearance: Flat ribbon cable, low profile, suitable for high-density chassis. 2、 Speed and protocol: Single channel speed: SAS 4.0 24Gbps; PCIe 4.0 16Gbps。 Total bandwidth (8 channels): SAS 4.0: 24Gbps x 8=192Gbps (≈ 24GB/s) PCIe 4.0: 16Gbps x 8=128Gbps (≈ 16GB/s). Backward compatibility: SAS 3.0 (12Gbps), PCIe 3.0 (8Gbps). Protocol support: NVMe, SAS, SATA (requires controller/backplane support). 3、 Electrical and environmental: Contact gold plating: ≥ 30 μ ", resistant to insertion and removal, and resistant to oxidation. Working temperature: -40 ℃~+85 ℃. Compliance: RoHS, UL94 V-0. Sidebands: Pure data signal, suitable for short-range internal interconnection.
Key Features
- SFF‑8654 8i（74pin）
- Both ends are SFF-8654 8i male heads with latch and pull tab
- Single channel speed: SAS 4.0 24Gbps; PCIe 4.0 16Gbps
- Impedance: 85 Ω (differential), compatible with PCIe/SAS signal standards
- Backward compatibility: SAS 3.0 (12Gbps), PCIe 3.0 (8Gbps)
- Protocol support: NVMe, SAS, SATA (requires controller/backplane support)
Specification
| Model |
SFF 8654 8X to 8654 8X |
| Both ends |
are SFF-8654 8i male heads with latch and pull tab |
| Single channel speed |
SAS 4.0 24Gbps; PCIe 4.0 16Gbps |
| length |
0.3m/0.5m/0.8m/1m
|
| Controller |
Lack |
| Systems Interface Type |
SFF‑8654 8i（74pin） |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
