SAS SATA RAID controller 9210-8I LSI00301
Applications

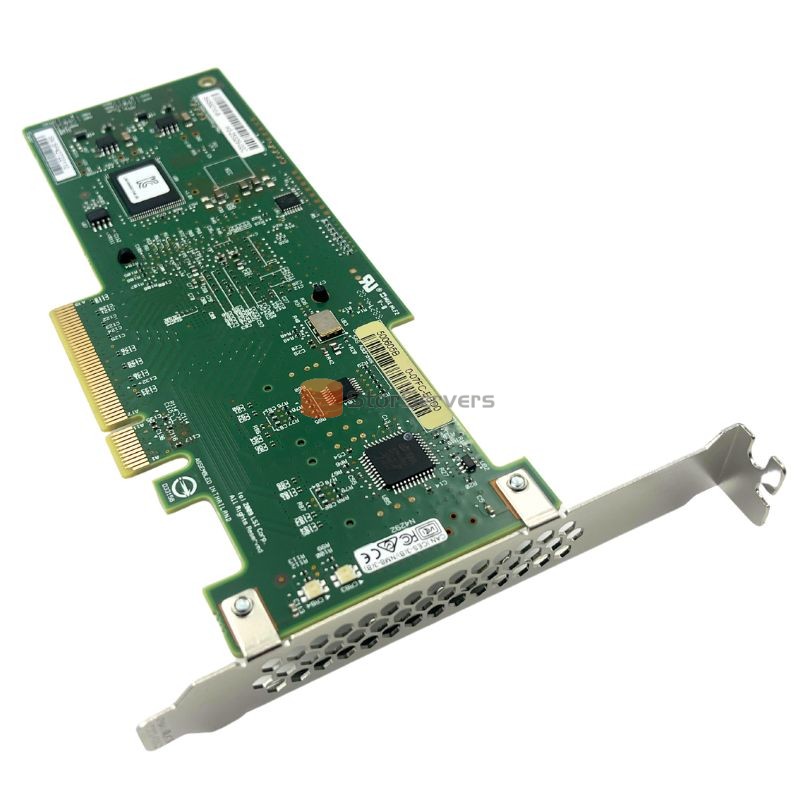

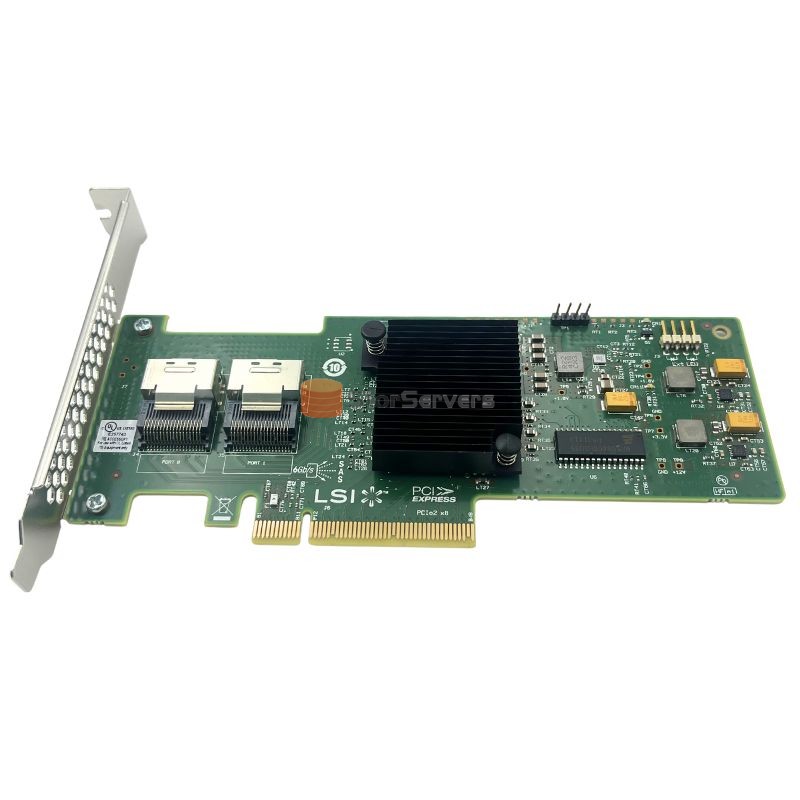

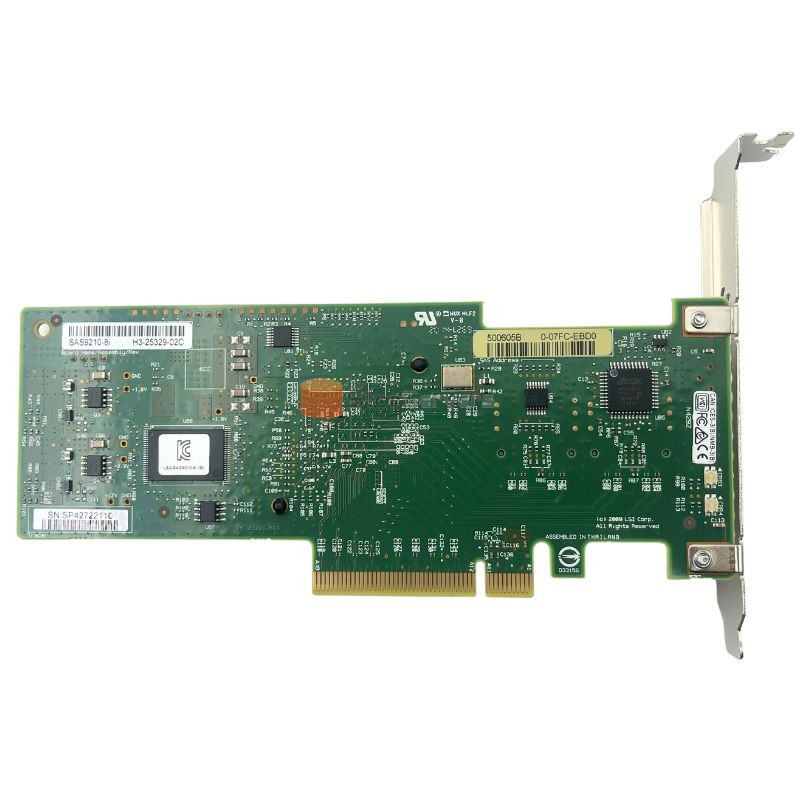

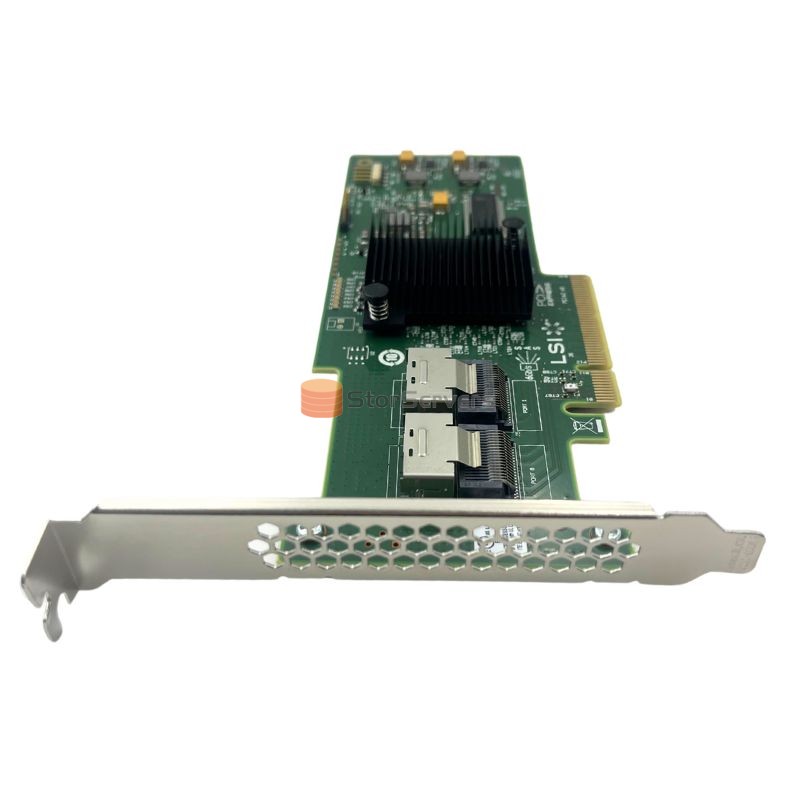

The LSI SAS 9210-8i host bus adapter provides high performance for internal drive connectivity in 1U and 2U servers and workstations. The LSI SAS 9210-8i provides 8 lanes of 6Gb/s SAS and is matched with 8 lanes of PCI Express 2.0 5Gb/s performance to eliminate bottlenecks. Performance is based on the LSISAS2008 IO controller that highly integrates the latest enhancements in PCI Express and SAS technology. The HBA supports up to 256 SAS or SATA devices.The LSI SAS 9210-8i has two (x4) internal mini SAS connectors (SFF8087) that are vertically positioned enabling a low profile solution which provide SAS and SATA data transfer rates of 1.5, 3 and 6Gb/s per lane through automatic speed negotiation that can achieve over 320, 000 IOPs. Enhanced features include T-10 Protection Information Model for early detection of and recovery from data corruption, and Spread Spectrum Clocking (SSC) for minimal EMI.
Key Features
• 8 internal 6Gb/s SAS+SATA ports
• 2 × SFF-8087（Mini-SAS HD）
• RAID levels 0, 1, 1E and 10
• SAS2008 6Gb/s Tri Mode ROC chip
• No cache
Specification
| Model |
9210-8I |
| Adapter Type |
SATA+SAS RAID |
| Storage Controller |
SAS2008 |
| Connectors |
2 × SFF-8087（Mini-SAS HD） |
| PCIe Host Interface |
PCIe 2.0 x8 |
| RAID Levels |
0, 1, 1E and 10 |
Form Factor
|
6.6 inches × 2.536 inches
|
Ports
|
8 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
About US
About us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages
-
-
High Quality
Good quality control System,competitive cost control system.
-
Low MOQ
Large production capacity with lowest MOQ.
-
-
-
Shipping & Packing
- Packing: standard export packing or customized packing
- Shipping Ways:
By express (3-7 days via DHL, UPS, TNT, FEDEX; 5-10 day Via EMS)
By air or sea or combined tranportation
FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for warranty free.
